Auditing Complex Processes
Transitioning complex processes from a black box
Introduction
I have had my fair share of experience designing, implementing, and supporting large sets logic. And by large, I mean roughly anything that could be flowcharted in perhaps a dozen pages or more meets that criteria. If you find yourself writing, supporting, or enhancing a process that might seem overwhelming, this article is for you. Here are a few examples of applications that might meet this criteria.
- Complex tax calculations
- A routine that performs composition calculations on a product
- A process for calculating payments based on a large set of variables
- A loan offer calculation routine (we will be using this as an example)
This level of complexity presents a challege as you are essentially building a black box. By default, developers might make use of logging, however the traditional approach does not really fit well into scenarios where you need an in depth detail about the decisions were made for a given transaction.
In this article I will talk a bit about my personal experience, and the solution that I learned to apply towards these types of cases. For the purposes of illustration, I will throw in an demo application. I have learned 'a thing or two' through my experience, and wanted to share that.
Tackling my first complex business logic routine
At an early point in my career, maybe about 5 years in (they call that mid level these days) I jumped on a large rewrite of a well established legacy application. It was the largest for that purpose in the world, written for the largest company in that industry space in the world. I admit, this was a bit intimidating at the time, but I was young, confident, and really proficient at what I was doing, ready to tackle the world. I could only define the experience as something I was completely unprepared for, lessons learned are the focus of this article.
My experience in that scenario started out with a very well intended attempt to document a legacy process, we ended up producing a 40 page flowchart document, tighly packed with edge cases. As a visual person, I ended up taping the consecutive pages together which resulted in something like a somewhere a 30 ft document. Although a bit hard to physically manage, this worked for me as I am a very visual person. The document became a visual aide for my peers to give me a well intended hard time, a series of references to myself and the 'captain of the Titanic' were common.
A drilled forward with with my efforts, we have a hard deadline of around 6 months to implement, test, and ship, single developer, no pressure right? I built the routine to spec, composed of granular, purposefull specific methods, each backed by well thought out unit level tests.
If the immediate ask was to build something acording to a spec, to replicate an legacy process, then I would call the teams efforts successfull. It compiled, unit tests passed, manual testing passed, and we obtained business sign off. Life seemed good, mission accomplished!
Fast forward a few months later, we were hit with a barrage of support related questions. In contrast to the legacy application we had replaced and the set audience, the rewrite was part of larger effort, a larger user base, new feature requests, and changes in business processes resulted in an unanticipated level of support related issues.
Support for the routine began to approach a full time role for at least to FTEs, my self included. Researching what had happened became like a full time effort, no bueno.
A revised approach
On the project I had mentioned above I found myself responding to frequent requests to results of various transactions. This was a time consuming process as I had only basic logging instrumented into the application. There was no way to debug the issue locally as the data was only in production, so I realized on going through large sets of log entries, with each request taking in upwards of 2 hours or more. These painfull sessions quickly drove me to pause and reflect on the black box we had sucessfully deployed.
As a result of rethinking the implementation, I came up with a concept for bringing a higher level of visibility into the application. The solution involved instrumenting the application with an 'agent' which aggregated information from events ocurring during each transaction. The events were stored in an hierarchal format, and then published into an easy to digest format, a format which allowed an analyst with no technical knowledge to clearly and concisely review any given translation.
The problem with traditional logging

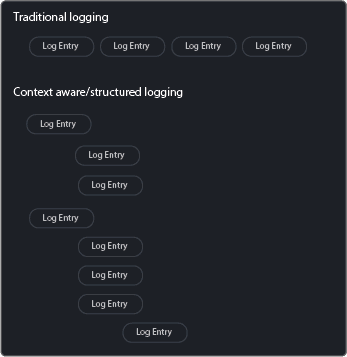

Traditional logging is flat, with each entry ocurring in sequence. This is fine for scenarios where it is appropriate to search for a series of tighly related entries for basic troubleshooting. When performing functions such as auditing a complex process, you typically will find yourself looking at a larger set of information, and the limitations of linear logging events become apparrent.
Utilizing Agents
An alternate approach towards auditing transactions is to utilize an agent. The agent is responsible for intercepting events during any given transaction, storing them for the duration of the request, after which point the events are published to an final destination where they are ready for consumption. Instead of storing events in a linear sequential manner, the agent collects them in an structured manner.
In some cases an process operates in an isolated manner, where all calculations occur within a single process. The agent could easily be deployed with the process it si monitoring itself. In other cases a process performs calculations which are dependant on information derived from APIs. While we cannot gather information from third party APIs, however we can apply this strategy to instances where the higher level operation is conducted across different processes exposes as internal facing APIs. For those scenarios, an agent would be instruented into each independant process, and a messaging bus would be used to share the events with a common agent responsible for translating them into a final report, illustrated as follows.
Next, we will take a look at an application simulating a lengthy set of logic in order to illustrate how this approach to auditing could be applied.
An Example Implementation
I am going to present an example of an concept application which performs a fair amount of business logic. Our example application takes place in the financial domain. Essentially a routine than is responsible for calculating loan terms based on a number of factors. In addition to an applicants income to debt ratio, address validation, criminal background checks, and other checks are performed. We won't be implementing the actual logic in this effort, so the services required to perform these actions are basically stubs, however enough to emulate what could be considered a complex process.
The application can be found at the following Github URL.
The entry point to the application is located at ./src/loan-app-processor.ts. The processLoanApplication method serves as the main entry point. You will notice in this method simply generates a unique id for the current transaction, and then puts the transaction into a context which is shared for the duration of the operation. Since the example application is a Node/Typescript implentation, we are working with AsyncLocalStorage, however for Java based apps, ScopedValue and ThreadLocal would be used. In either case, the concept is the same, by pinning a reference to an value or object into a request scope, we avoid the requirement to pass it as an argument between methods, which would cloud up the code base.
1(loan-app-processor.ts)
2
3// Process entry point
4export const processLoanApplication = (app:LoanApplication):LoanApplication =>{
5 console.log(`attempting to process new application.`);
6
7 const transactionId:string = AuditAgent.initTransaction();
8 storage.run({ transactionId: transactionId }, () => {
9 processLoanApplicationInternal(app);
10 });
11
12 return app;
13}
14
15
16...finally{
17 AuditAgent.endTransaction();
18 return app;
19}Starting at line 9 in the above snippet, we iniitate the process, at which the transaction id resides in a context shared across the request. The higher level of operations is encapsulated by a try/catch/finally clause, and line 17 in the snippet illustrates a point where the auditing agent recieves notification that the series of operations have terminated, initiating the events need to be translated into the final report.
The agent implementation
The src/monitoring/ folder contains agent related files consisting of the agent (audit-agent.ts) and another file responsible for translating the event data (publisher.ts) into the final report. The agent itself works with a data structure (.ts) to store event information. You will note that the data structure is an hierarchy of objects, with each branch representing a group
Let's breakdown the overall process. A main method (processLoanApplicationInternal) is wrappered by the entry point. The main method in turn acts as an conductor, calling a series of services, each responsible for a specialized function, such as performing a calculation, or callig an API. The key take away is that there are a series of logic points, each of which could be considered a high level step in a series of events. Additionally, each high level step also could be further broken down into sub steps. Events are associated within a group, which provdes the ability to organize them more clearly for analysis. Keep in mind, there is just enough logic in the application for the purposes of illustration, in a real world application we would be dealing with much more logic, collecting hundreds of data points, so organization is key. This will become more clear after viewing the example reports below.
1export const validateAddress = (address:Address)=>{
2 try{
3 AuditAgent.initGroup('Address validation');
4
5 // Basic string checks
6 assertAttributePresent('Street',address.street);
7 assertAttributePresent('City',address.city);
8 assertAttributePresent('State',address.state);
9 assertAttributePresent('Postal Code',address.postalCode);
10
11 // Emulate an API call to an address service API
12 mockApiCall();
13
14 AuditAgent.recordMessage(`Applicant address for ${address.street},${address.city} is considered valid.`);
15
16 }
17 finally{
18 AuditAgent.endCurrentGroup();
19 }
20}The about source is an example of how the transaction boundaries are established around a unit of work. Line 22 reflects the interaction with the audit agent. Basically only an message is sent to the agent. The caller, in this case AddressValidationService needs only to communicate with the agent in a static manner, and the agent itself is responsible for associating the message with the current transaction id. The interaction itself is pretty straightforward, but you will note there is a modesto amount of work required to setup the transaction boundary. It is a tradeoff between enhanced visibility and a cleaner code base.
Publishing reports

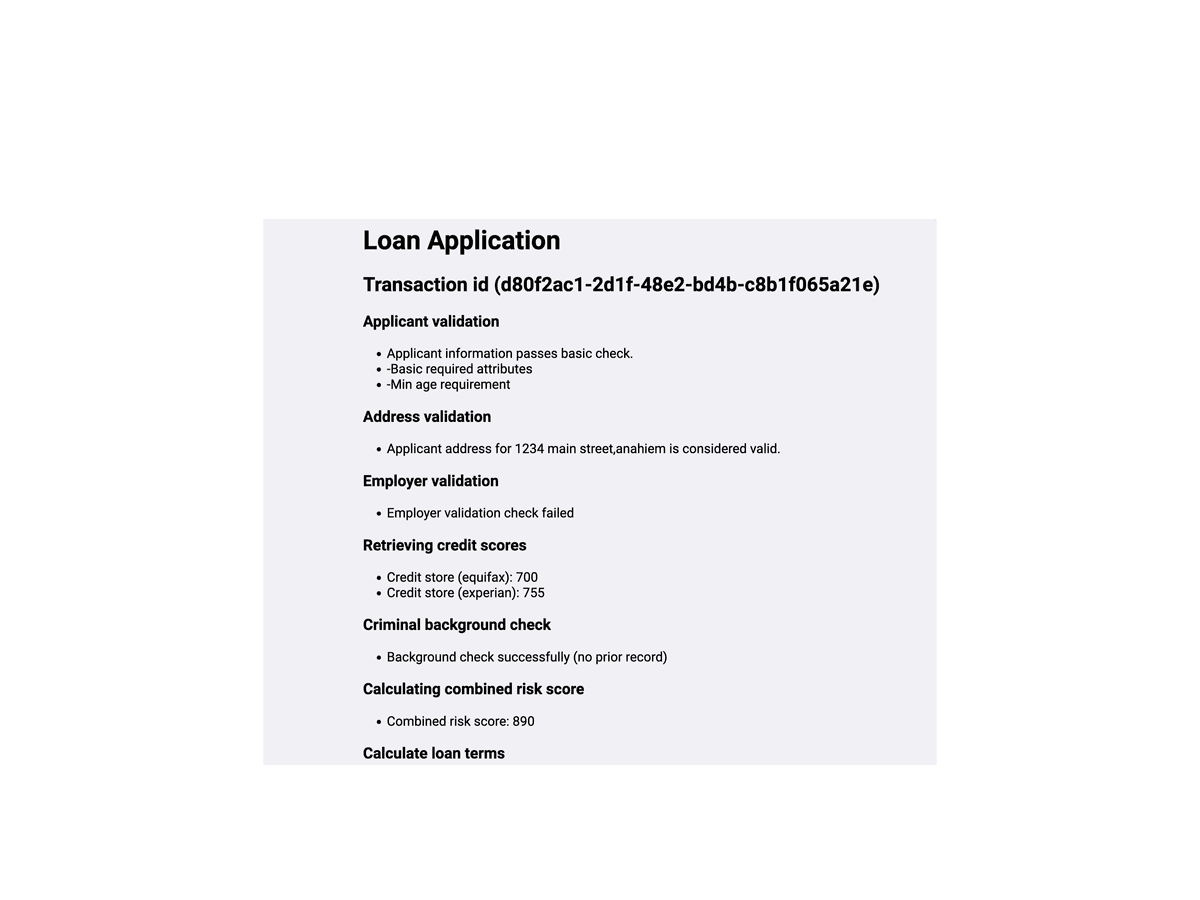

This implementation uses HTML for the final report output. PDF is another option, however I would take into consideration the fact that in the event your reports span multiple pages (as was the case on many of my previous projects) presenting information in a top to bottom format may result in an overwhelming amount of information. HTML provides the ability to apply CSS and Javascript functions that would allow the consumer to expand and contract entries at each level for easier readability.
The above example illustrates a detailed snapshot of the series of events. Internal compliance, anaysts, external regulatory agencies can all easily interpret the decisions made during the given process execution. This does require domain knowledge, however not any real level of technical expertise, placing the information of the right audience.
Again, this is a simplified version to illustrate a concept, however real world scenarios can easily run multiple pages, with each section potentially containing dozens of messaging entries. Would strongly encourage anyone to explore options to implment functionality to collapse columns in order the user to start analysis at a high level, and then expand/drill down on an as needed basis (I should probably roll this into my demo at some future point).
The publishing is performed the file './src/monitoring/publoisher.ts'. In this implementation, I decided to use a templating library (handlebars) to translate the event data structure into the final HTML report. In the past I have also taken an approach where the report data was initially serialized into XML, and then an XSLT translation was performed in order to produce the final output.
Summary
After learning my lesson the hard way after my first attempt at tackling a complex business logic process, and the refactoring, this has really changed by attitude towards system design. When I identify project that meet my definition of 'complex business logic', I immediately raise up the topic of auditing, which usually drives the larger conversation.
Keep in mind that large complex processes are hard to test and validate. There is a natural assumption from the perspective of others that if the results do not match the expected inputs (assuming they are correct in the first place), is some type of software bug. Raising visibility into the hands of the stakeholders is critical. In the case of my previous experiences, hundreds of millions of dollars were on the line, this type of visibility becomes paramount to answering questions where a lot of capitol is on the line. For other scenarios, operating under tight regulatory compliance constraints, an inability to validate transactions can lead to financial and even criminal consequences.
I hope this article, and the accompanying project drives a though process on how this approach on the projects you are engaged with in the future. With software impacting a lot of aspects of our every day lives, by promoting discussions on best practices in this industry helps the overall effort for the industry to produce more reliable software.
